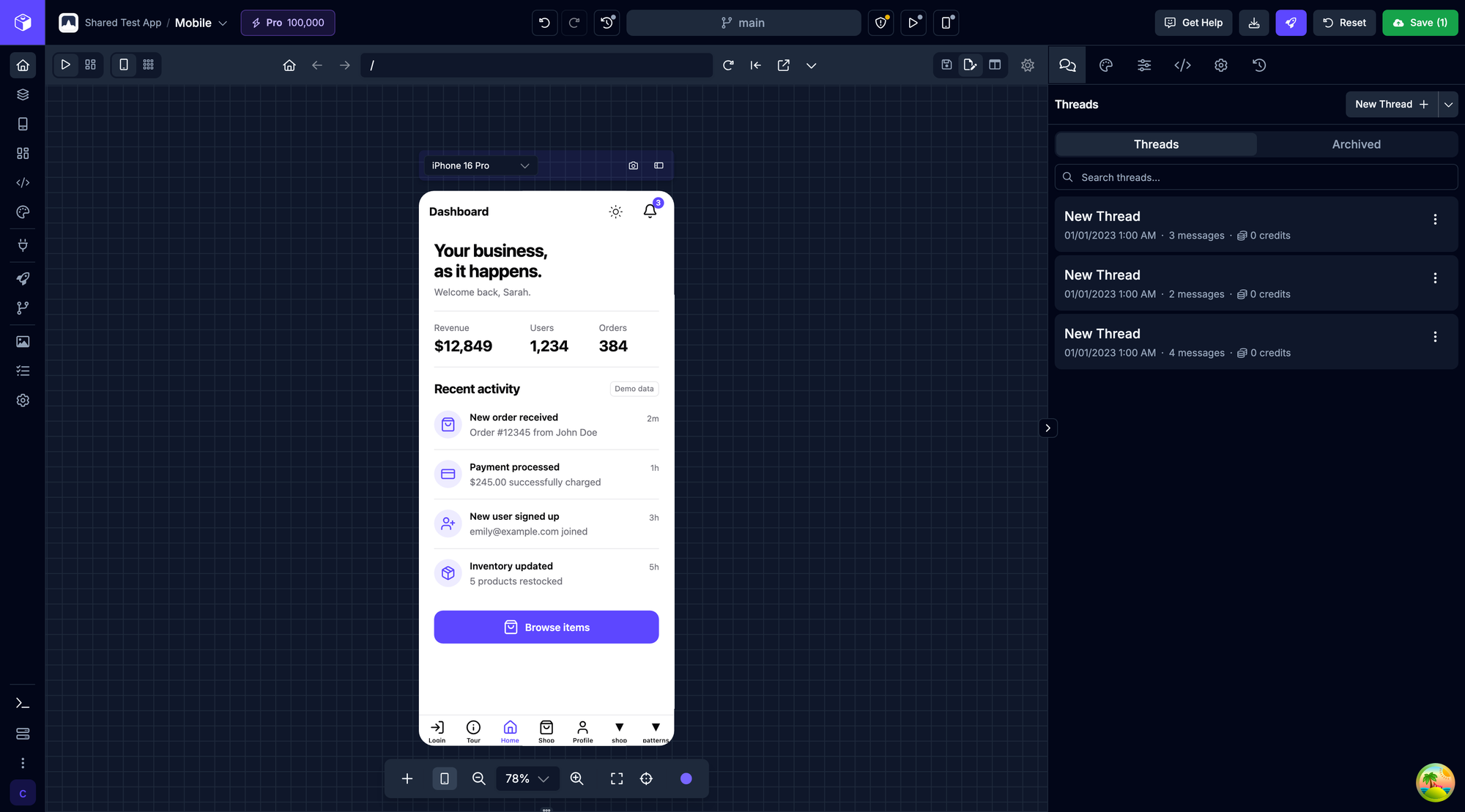

Builder Overview

The Draftbit Builder is your workspace for turning app concepts into reality. It combines a Home view, visual editor, live preview, AI agent, code editor, integrations, build configuration, and publishing tools in one place.

To learn more about the different Builder views, follow the links below.

Main Menu

You can access the main areas of the Builder from the project navigation on the left side of the Builder. The Home icon opens the default app workspace with the preview, agent, and editor panel available without opening the full screens/components layout. The Draftbit logo above the menu takes you back to your dashboard.

The menu shows what fits the app you have open and your role. Viewers see Home, Preview, and, for API Backend apps, API Docs. Editors and above see the rest, and some items only appear for certain kinds of apps, as noted below. Dividers split the menu into four groups: building the app (Home through Themes & Design), Integrations, shipping it (Publishing through History), and managing the app and project (Project Assets through Settings). Project Assets, Tasks, and the Project Settings section of Settings apply to the whole project rather than one app.

Icon	Action	Description
	Home	Chat with the agent and preview your app
	Preview	Test and preview your app. Shown to Viewers, since Editors preview from Home and the Visual Editor.
	Visual Editor	Visually design screens, components, and styles with AI assistance. Apps with a visual frontend only.
	Simulator	Preview your app on iOS and Android simulators. Mobile (Expo) apps only. Building simulators needs the Pro plan or above.
	Mockups	Compare mockups the agent designs before it changes your app. Not shown for API backends.
	Code Editor	Edit your code directly using the built-in editor
	Themes & Design	Customize shared theme colors and typography, or import a design to build screens from
	Integrations	Connect APIs, data sources, and MCP servers. The app’s own tabs come first, then the project’s MCPs, which every app in the project shares.
	Publishing	Manage app publishing and deployments to web, iOS, and Android
	API Docs	Live documentation generated from your API’s OpenAPI spec. API Backend apps only.
	History	Restore any saved version on the Versions tab, and download or create backups of your app’s code on the Backups tab
	Project Assets	Cloud storage for your images, video, audio and other media files at the project level
	Tasks	Track and manage development tasks at the project level
	Settings	Settings for this app and its project: General (app identity, app configuration, and app actions), Packages and Environment Variables, Variables for apps imported from Classic, Agent defaults, saved prompts, and instructions, and Project Settings

Workspace Layout

The Builder remembers how you arrange each app. Panels you collapse, splits you resize, and whether Logs is open stay the same when you reload or come back later. Each app keeps its own layout, so changes in one app don’t affect another. Where you dock Logs (top, bottom, left, or right) is a single setting for all your apps, and Logs remembers its size in each position.

To return the app you have open to the default layout, open the account menu from your avatar and choose Reset layout. The Builder reloads with the default panels and sizes.

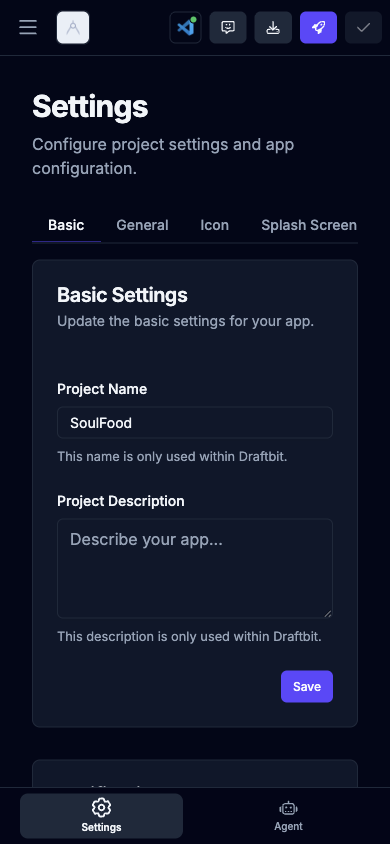

Mobile Builder

On mobile-width screens, the Builder switches from the left project navigation to bottom tabs. The Home view includes Preview, Agent, Editor, and Account. The full Visual Editor also includes a Screens tab for the screens list and component tree.

Tap the tab you’re on again to switch between its views. Screens switches between the Screens and Components lists, Agent switches between your threads and the last thread you opened, and Editor moves to the next editor tab, such as Styles, Properties, or Code. Dots under the tab show how many views it has and which one you’re on.

Support Menu

The bottom of the left navigation holds the preview logs toggle, the preview server restart button, the More menu, and your account menu. The More menu holds the full Logs page, plus helpful resources and secondary controls such as What’s New, Roadmap, Docs, Videos, Sandbox Status, and the light/dark theme switcher.

Icon	Action	Description
	Show Preview Logs	Open or close the logs panel next to the preview, with build output and errors. Available on larger screens.
	Restart Preview Server	Restart the server that runs your app’s preview
	More	Additional resources, settings, and sandbox controls
	Sandbox Status	View the current sandbox, repository, and preview status for the app
	What’s New	View the latest product updates and announcements, without leaving the Builder
	Roadmap	View and contribute to the platform roadmap, without leaving the Builder
	Docs	Learn about building apps using Draftbit
	Videos	Watch video tutorials, office hours, and more
	Switch to Light/Dark Mode	Switch between a dark and light Builder UI

Top Bar

The Top Bar runs across the top of the Builder and contains the actions you reach for most often. On smaller screens, some buttons show only their icon, and the middle group of status buttons is hidden. Editing actions, such as Undo / Redo, Recommended Changes, Export, Publish, and Save, need the Editor role or above.

Icon	Action	Description
	App Switcher	Switch to any project or app in your workspace. For each project you can also open its dashboard, Supabase page, or Project Settings, or create an app
	Billing	Check your remaining credit balance and top up
	Undo / Redo	Undo your last unsaved change, or redo one you undid
	History	See your five most recent saves, with a link to the full History
	Branch	Shows the name of the branch you’re working on. Click it to see the full name.
	Recommended Changes	Run checks on your app and fix what they find, or ask the agent to fix it
	Live Preview	Open a QR code to preview the running app on a real iOS or Android device using the Draftbit Preview app. Mobile (Expo) apps only.
	Simulators	Build iOS or Android simulators of your app. Mobile (Expo) apps on the Pro plan or above; on other plans, the button opens an upgrade prompt.
	Platform Alerts	Appears when Draftbit has an active incident or resolved one in the last 12 hours
	External Support Needed	Appears when the agent has hit a problem in your app it can’t fix on its own
	Get Help	Open the in-app support chat
	Migrate	Appears on imported apps that Draftbit recognizes as a framework it supports
	Export	Download a zip file of your saved code or commit it to GitHub (Standard plan or above). Unsaved changes aren’t included.
	Publish	Open the publish popover with the web, Apple App Store, Google Play Store, and Share options that fit your app
	Reset	Discard all unsaved changes. Appears when you have unsaved changes.
	Sync	Bring new commits from your repository’s main branch into your working branch. Appears on connected GitHub apps when the main branch has changed.
	Save	Review and save your changes as a new save point. Shows a check mark when there’s nothing to save.

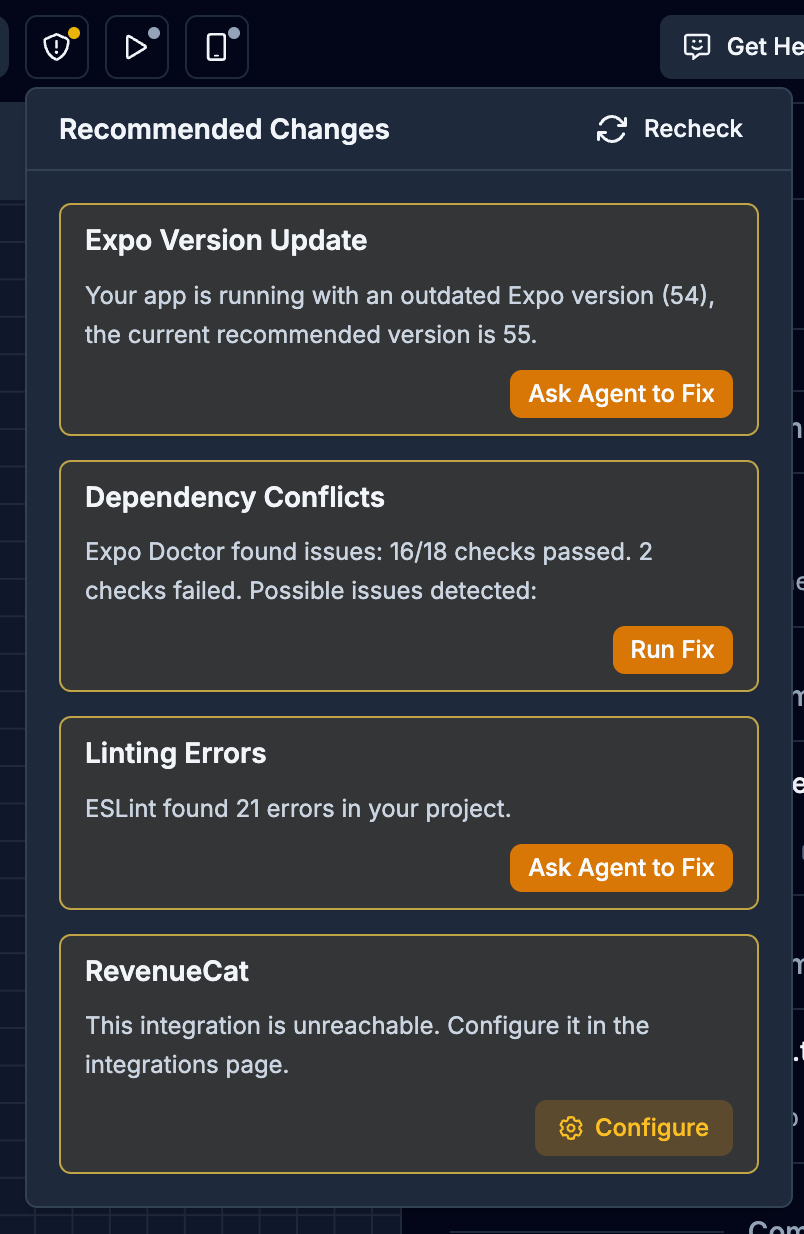

Recommended Changes

Draftbit checks your app for common problems and shows the result on the shield button in the top bar. A green shield means All checks passing; an amber one means something needs a look. Click it to open the list. Click Recheck at the top of the list to run the checks again, for example after you’ve fixed something.

The list can include:

• Expo Version Update
• Missing Entry Point
• Missing Root Layout
• Dependency Conflicts
• TypeScript Errors
• Linting Errors
• Missing Routing Setup
• Publishing Unavailable
• Preview Error, when the preview is running with an error
• An integration from Integrations that needs to be configured, needs verification, or can’t be reached

Each item explains the problem. Click Ask Agent to Fix to start a new agent thread with instructions for the fix, or Run Fix where Draftbit can apply the fix itself. For an integration, click Configure to open the integrations page.

Saving, resetting, and syncing

Every edit you or the agent make is an unsaved change until you save it. While changes are unsaved, the Save button shows how many files changed, and Reset appears next to it.

• Save opens the Save & Commit dialog, where you review the changes and create a save point. See Saving Changes.
• Reset lists the changed files and asks you to confirm. Discard Changes reverts every file to your last save. This can’t be undone.
• Undo / Redo steps through your unsaved changes one at a time, so you can back out a single edit without discarding the rest.

When you edit in the Builder, a Syncing changes… notice appears in the lower-right corner while your edits reach your app. If syncing takes a while, the notice says your changes are kept in this browser and offers Options, where you can keep waiting or choose Discard unsynced edits.

To compare your saved and unsaved versions in the preview before you save, see Comparing Builds.

Migrate

When you import an app that Draftbit recognizes as a framework it supports, a Migrate button appears in the top bar. Migrating unlocks the full feature set for that kind of app, including publishing, previews, and visual editing. Click Migrate, then Migrate app to confirm. The sandbox restarts, then the agent walks you through the migration.

Caution

Migrating restarts the sandbox, and any unsaved sandbox changes are lost. Save first if you want to keep them.

Alerts and support

Two buttons appear on the right side of the top bar only when they have something to tell you:

• Platform Alerts (a bell, or a warning icon for a critical incident) lists active Draftbit incidents, plus any resolved in the last 12 hours.
• External Support Needed (a red warning button) appears when the agent decides your app is in a state it can’t recover from on its own. Choose Hire an Expert to get a Draftbit Expert on it, or Chat with Support.
